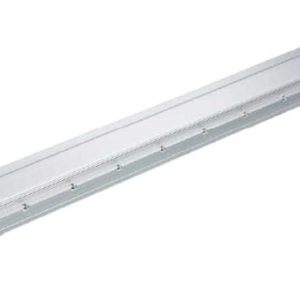

• GTY12

    Motor-less GTY12

    Thông số kĩ thuật Motor-less Electric Actuator GTY12

    • Repeatability：±0.01(mm)
    • Ball Screw Lead：5/10/20/32(mm)
    • Maximum Speed ：300/600/1200/1920(mm/s)
    • Maximum Payload (Horizontal)：110/88/40/30(kg)
    • Maximum Payload (Vertical)：33/22/10/8(kg)
    Liên hệ Đọc tiếp

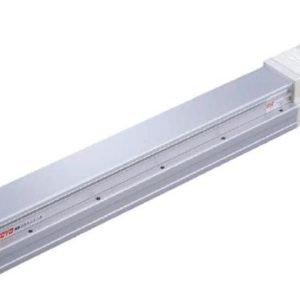

  • GTY8

    Motor-less GTY8

    • Repeatability：±0.01(mm)
    • Ball Screw Lead：5/10/20(mm)
    • Maximum Speed：250/500/1000(mm/s)
    • Maximum Payload (Horizontal)：50/30/18(kg)
    • Maximum Payload (Vertical)：15/8/3(kg)
    Liên hệ Đọc tiếp

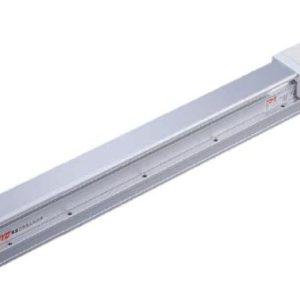

  • GTY5

    Motor-less GTY5

    • Repeatability：±0.01(mm)
    • Ball Screw Lead：2/5/10/20(mm)
    • Maximum Speed：100/300/600/1200(mm/s)
    • Maximum Payload (Horizontal)：30/30/15/10(kg)
    • Maximum Payload (Vertical)：10/10/5/2.5(kg)
    Liên hệ Đọc tiếp

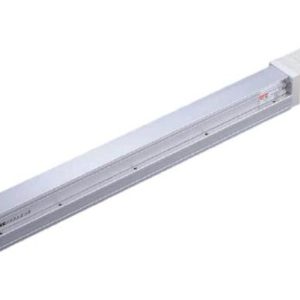

  • GTY4

    Motor-less GTY4

    • Repeatability：±0.01(mm)
    • Ball Screw Lead：2/6/12(mm)
    • Maximum Speed：100/360/720(mm/s)
    • Maximum Payload (Horizontal)：25/20/12(kg)
    • Maximum Payload (Vertical)：8/5/2(kg)
    Liên hệ Đọc tiếp
